3. Quick Start: IF800 Tomcat#

3.1. Hardware requirements#

  • IF800 Tomcat drone

  • SkyHub V3 (with mounting kit)

  • SkyHub 3 smart cable with the dovetail

  • Altimeter (laser or radar) with a mounting bracket

3.2. Software requirements for the Windows PC#

3.3. Software requirements for the Remote Controller#

  • Inspired Ground Control v1.5.4 or higher

3.4. Network requirements#

  • Any Wi-Fi/hotspot to connect the Remote Controller and the Windows PC within a single network.

3.4.1. UgCS desktop download and setup process#

  1. Download the installation package: https://www.sphengineering.com/flight-planning/ugcs-downloads

  2. Run the setup file.

  3. Read and acknowledge the license agreement.

  4. In the component selection tab, you can select additional autopilot support (if necessary).

  5. Installation complete.

3.4.2. UgCS Custom Payload Monitor download and setup process#

  1. Download the latest available CPM version here: https://www.sphengineering.com/integrated-systems/downloads

  2. Run the setup file.

  3. Select the SkyHub license file for the SkyHub you will be using.

SkyHub license file selection

  1. Read and acknowledge the license agreement.

  2. Installation complete.

Note

If you do not have a license file or need a new one, please reach out to us at support@ugcs.com and provide your SkyHub serial number.

3.4.3. SkyHub installation on the drone#

Warning

Power off the system when connecting cables. To avoid short-circuiting or causing potentially harmful power fluctuations, it is recommended to power off the entire system before performing any cable plug-in or unplugging. Some of the payload sensors used are extremely sensitive to power changes and may be damaged.

3.5. Components#

SkyHub assembly kit contains the following components:

  • SkyHub onboard computer

  • SkyHub 3 smart cable with the dovetail

  • Altimeter mounting bracket

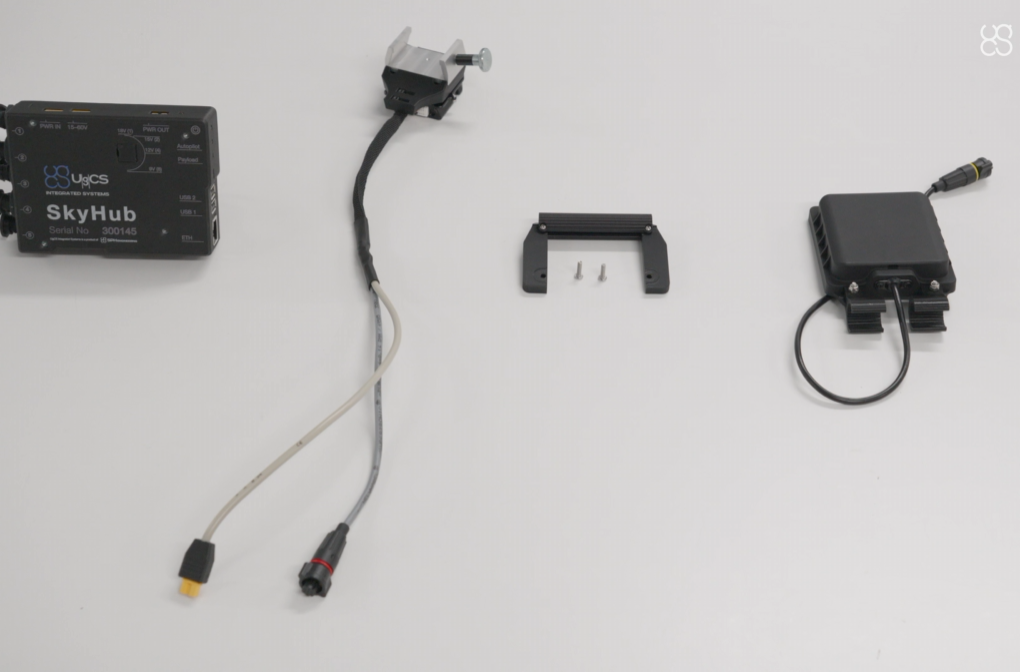

SkyHub assembly kit components for IF800 Tomcat

3.6. Physical assembly#

Warning

It is advised to install the altimeter bracket first, outherwise, access to the mounting points on the drone might be obscured later on during the assembly

  1. Attach altimeter mounting bracket to the body of the drone below.

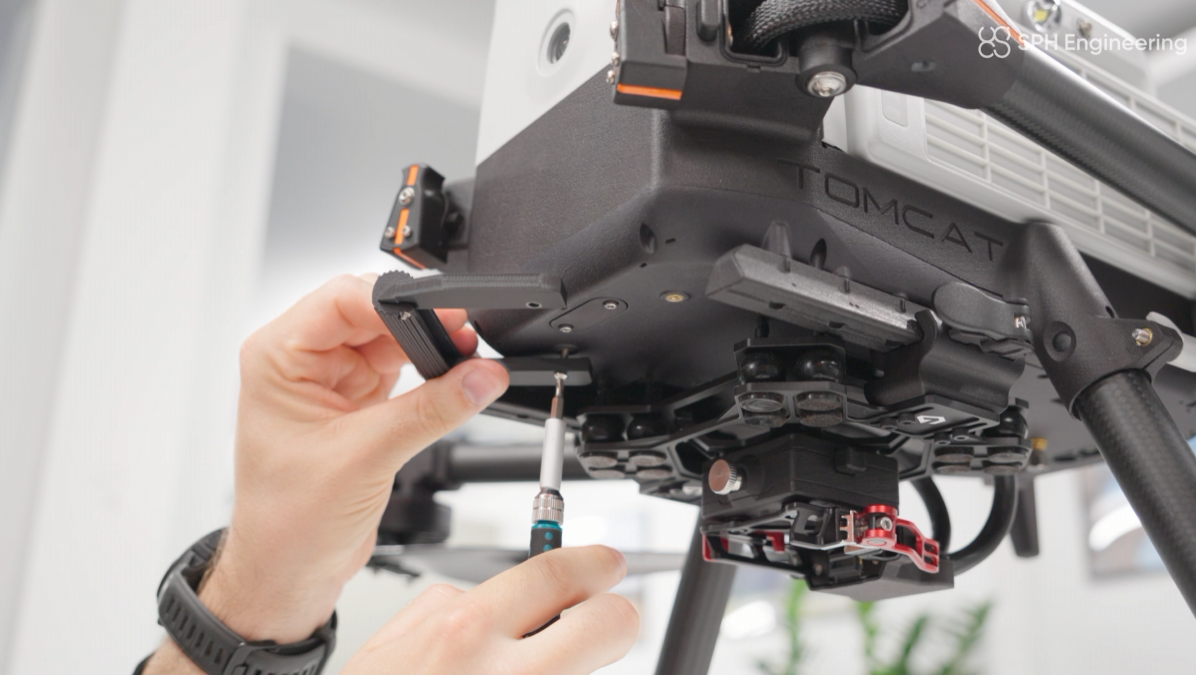

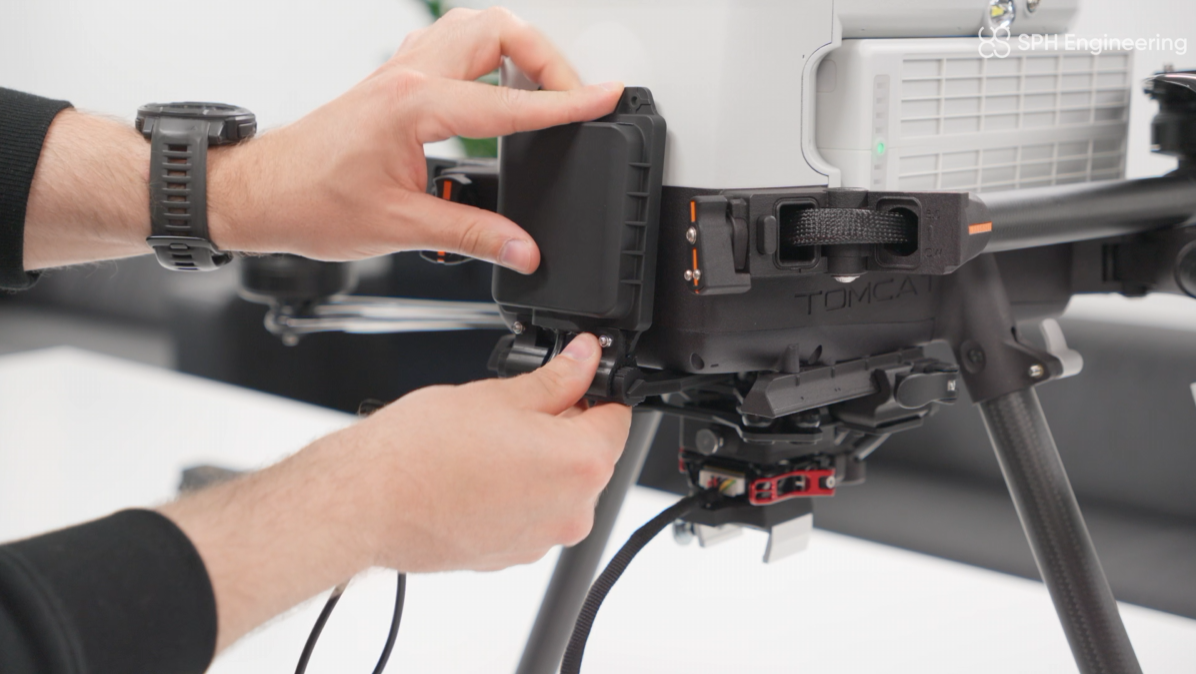

Altimeter mounting bracket placement below the drone.

Note

If the built in gimbal is in the way of the mounting points, you can slide it all the way back.

  1. Attach the dovetail cable on the gimbal.

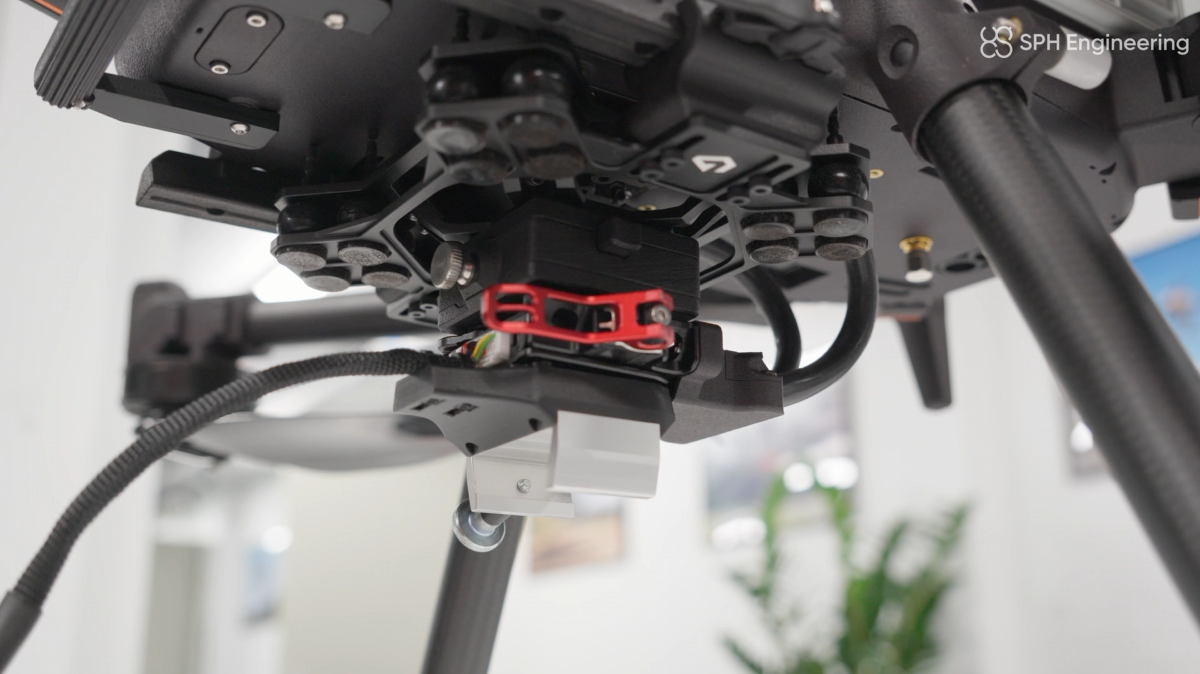

Dovetail placement on the gimbal.

  1. Attach the SkyHub on the leg of the drone.

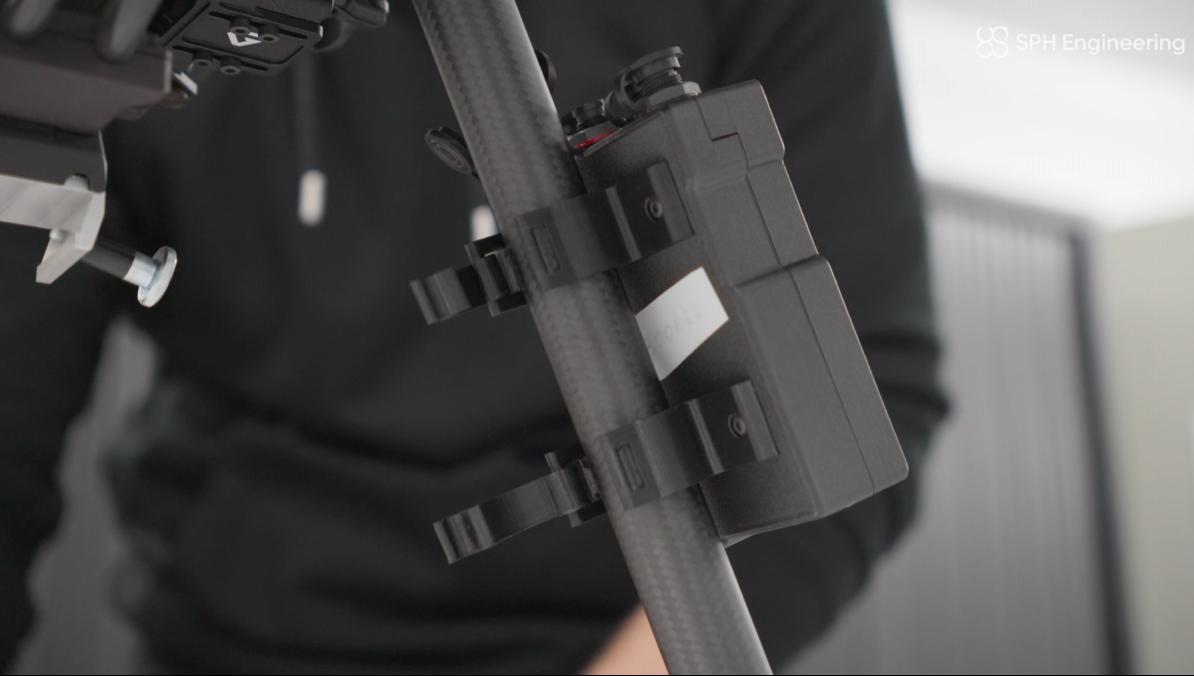

SkyHub placement on the leg of the drone

  1. Plug in the drone link cable (Red) to the third connector (Red) on the SkyHub.

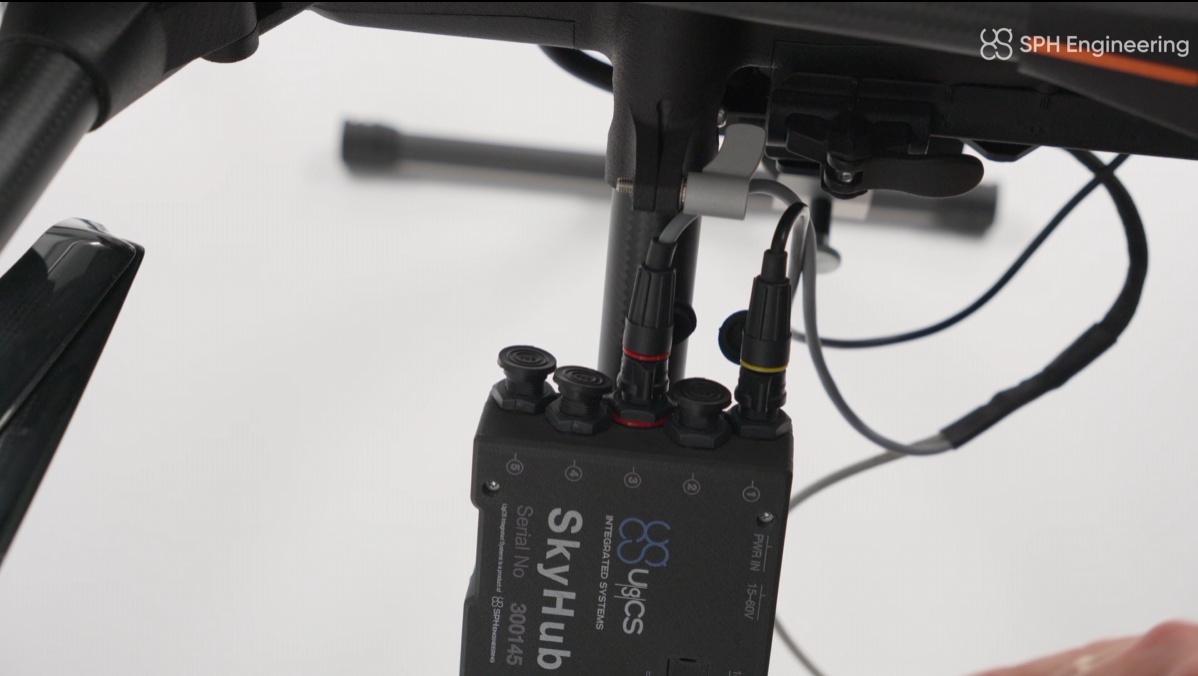

Drone link cable connector

  1. Plug the power cable into the first power port on SkyHub.

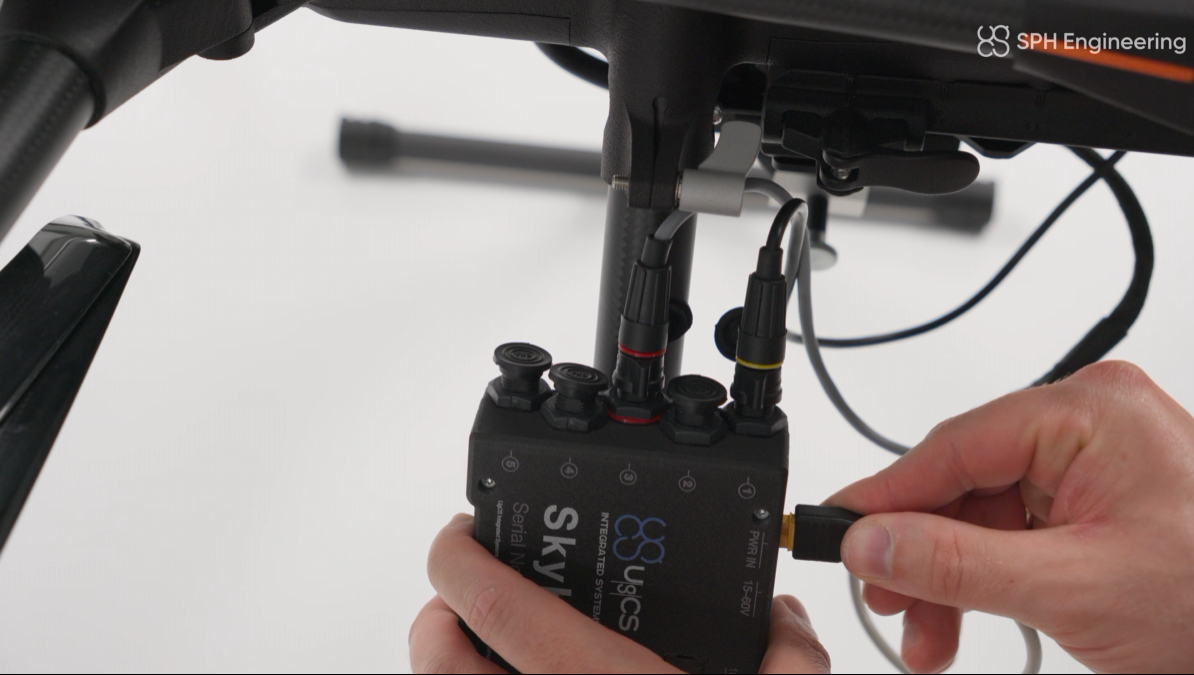

Power cable connector

  1. Physical assembly of the SkyHub is complete. Check that all the connectors are secured tightly, with no loose movements.

3.6.1. Altimeter installation on the drone and connection to the SkyHub#

To install the altimeter sensor on the IF800 Tomcat, use the mountings provided with the sensor.

Note

At this points, mounting bracked should be already installed on the drone.

For your convenience, we have a library with 3D models you can download and print yourself in case the default ones are broken or missing: https://files.ugcs.com/s/fMpj5LJpobWeMFi

  1. Slide the altimeter vertically on the previously attached bracket.

Altimeter placement on the bracket

  1. Adjust the altimeter position by rotating it downwards or upwards.

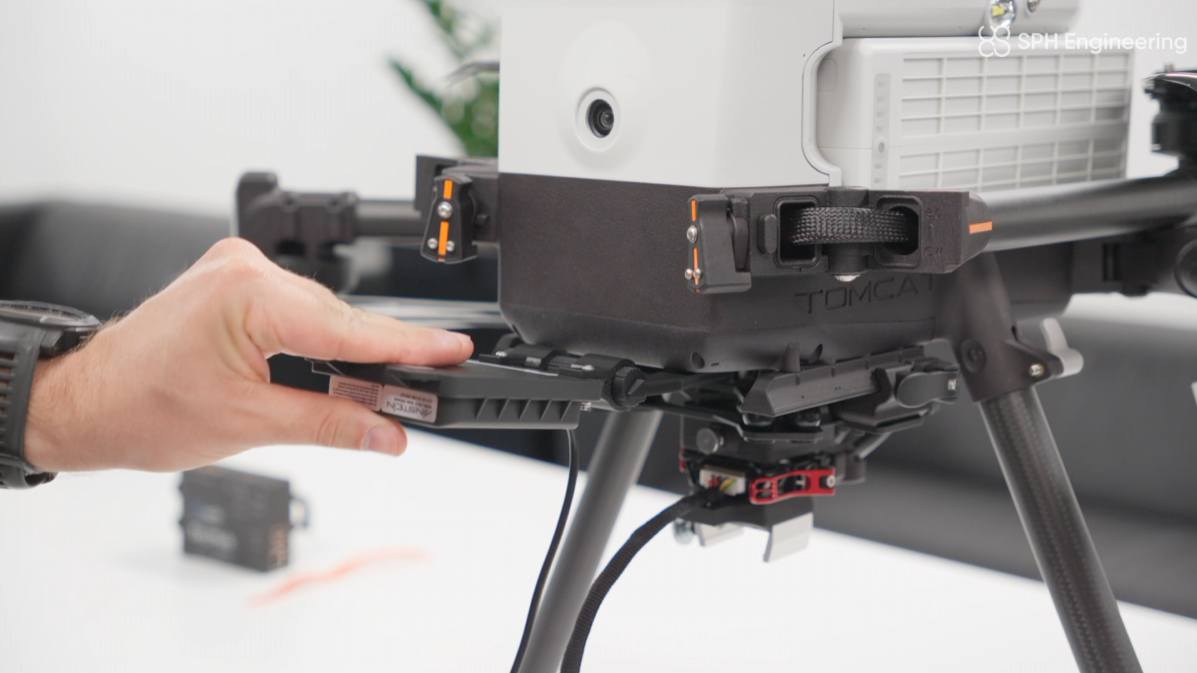

Altimeter position adjustment

Note

If you wish to detach the sensor, simply perform the same action in reverse. Place the altimeter in the vertical position and slide it up from the gimbal.

  1. Connect the cable to Connector 1 (yellow) on the SkyHub.

Altimeter connected to the SkyHub

  1. Setup is complete. You can now proceed with the widget configuration.

3.6.2. Altimeter / Autopilot configuration within the CPM software#

Before proceeding further, power on both the drone and remote controller. Then, make sure that your computer and the controller are connected to the same network. This is required to establish the drone link connection between CPM on your computer and SkyHub on the drone.

Note

SkyHub will take a little more time to fully boot up. You can check whether it is ready by the indicator within CPM. As soon as the SkyHub indicator becomes green, you can proceed with the configuration.

CPM showing SkyHub online status

3.7. Enabling the autopilot#

  1. Press the “All settings” button.

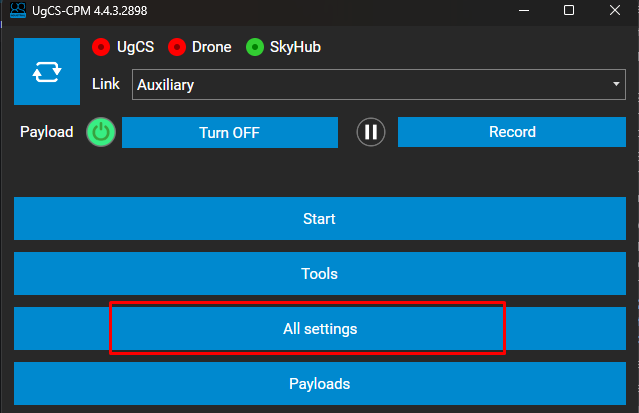

CPM all settings button

  1. From the drop-down list, select the “SkyHub Autopilots” section.

  2. Enable MAVLINK (note that only one autopilot can be enabled at a time). Press Save and perform a system restart.

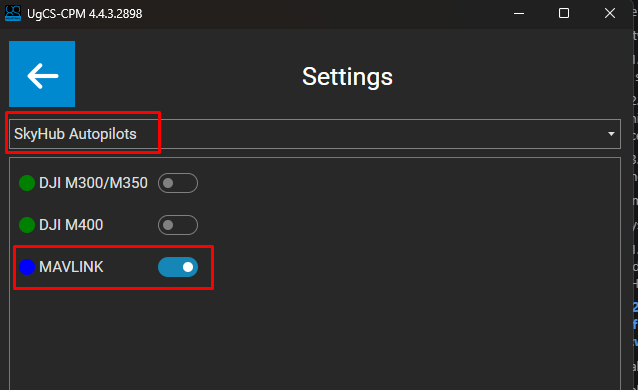

MAVLINK autopilot enabled in CPM settings

Autopilot configuration is complete. After the system restart, you will notice that the drone link icon should become green.

CPM showing drone online status

3.8. Enabling the altimeter#

When both drone link and SkyHub connections are established, you can proceed with the altimeter widget configuration.

  1. Click on the Payloads section

CPM payloads button

  1. From the payload list, search for your altimeter model (in our example, it is US-D1), enable it, and press the Save button. Perform a system restart.

Enabling altimeter in CPM payloads

  1. After the restart is complete, press the Start button.

CPM start button

  1. From the drop-down list, select the altimeter model you enabled previously and press the “plus” icon

CPM widget dropdown menu

Widget configuration is complete. If everything was set up correctly, you should see the initial readings from the sensor.

CPM altimeter widget showing readings
